A Beginner’s Guide to Load-Bearing and Framed Structures

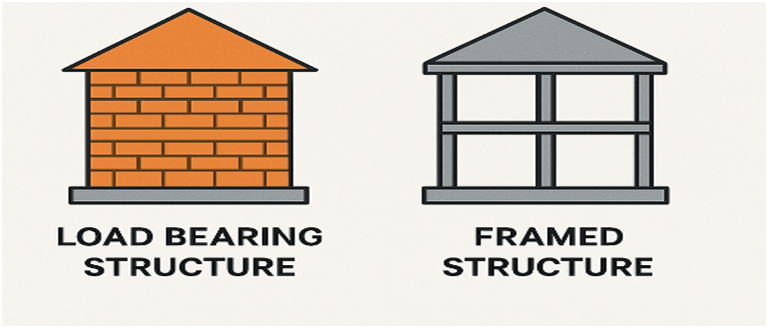

When designing a building, one of the first decisions an architect or engineer must make is the type of structural system to use. The two most common types are “Load-Bearing Structures” and “Framed Structures”. Both systems are designed to carry the weight of the building, but they do so using very different techniques.

What is a Load-Bearing Structure?

A Load-Bearing Structure relies on walls to support the building’s weight, including the floors, roof, and any live loads (people, furniture, etc.). These walls transfer the load directly to the foundation. This method has been used for centuries and is common in traditional, low-rise, or rural buildings.

 Key Characteristics:

1. Constructed using masonry materials such as bricks, stones, or concrete blocks
2. Walls are thick and solid to handle vertical loads
3. No skeletal frame (no columns or beams)
4. Suitable for 1–2 storey buildings
5. Common in residential houses, heritage buildings, and village homes

 Advantages:

1. Simpler construction; often doesn’t require advanced machinery
2. Lower cost for small structures
3. Better thermal and acoustic insulation due to thick masonry
4. Uses locally available materials

 Limitations:

1. Rigid design; hard to modify or extend rooms
2. Not feasible for multi-storey buildings
3. Longer construction time in some cases
4. Reduces the floor area due to thick walls

What is a Framed Structure?

A Framed Structure consists of a skeleton of columns and beams. These structural elements carry the loads, while the walls serve as non-load-bearing partitions. This system is widely used in modern buildings, especially where height, open spaces, and architectural freedom are required.

 Key Characteristics:

1. Uses steel or reinforced concrete (RCC)
2. Walls are lightweight and non-structural
3. Loads are transferred to the foundation through the beam-column framework
4. Common in commercial complexes, high-rise apartments, shopping malls, airports, etc.
5. Allows open floor plans and larger spans

 Advantages:

1. Flexible layout; rooms can be changed or extended easily
2. Perfect for vertical expansion (adding more floors)
3. Faster construction with prefabricated or modular techniques
4. Can resist earthquakes and wind loads better (when properly designed)

  Limitations:

1. Requires structural expertise and proper engineering
2. Higher initial cost (materials and skilled labor)
3. Might need regular maintenance in high-rise buildings

 Example:

Load-Bearing Structure: A small countryside house with thick brick walls and no columns — simple, strong, and traditional.

Framed Structure: A 10-storey apartment building in the city with glass facades, wide living rooms, and open kitchen spaces — all supported by a concrete frame.

Summary:

Load-Bearing = Walls do the work

Framed Structure = Skeleton (beams & columns) do the work

Understanding the difference between these two systems helps you choose the right one for your building’s purpose, size, location, and budget. Whether you’re designing a cozy home or a tall office tower, your choice of structure will shape not just how it stands, but how well it fits your future needs.
